68G6

Over 100 Functions Modules

Features

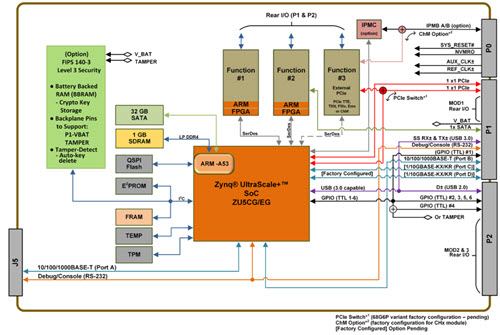

• Support for three independent, smart function modules
• Independent x1 SerDes interface to each function module slot
• Operating temperature: 0° C to 71° C commercial, -40° C to +85° C rugged
• Slot Profile:SLT3-PAY-2U2U-14.2.17
• Module profile: MODA3p-16.2.16-1-F2C-(P3U)(2E7)
• 2x 10/100/1000 Base-T Ethernet
• Background Built-In-Test (BIT) monitors the health of each channel
• Designed to meet ANSI / VITA 46.11 requirements
• Software Support Kits (SSKs) and drivers available
• Connections via front panel, rear panel, or both
• Control via Gig-E or PCIe (x1) interface
